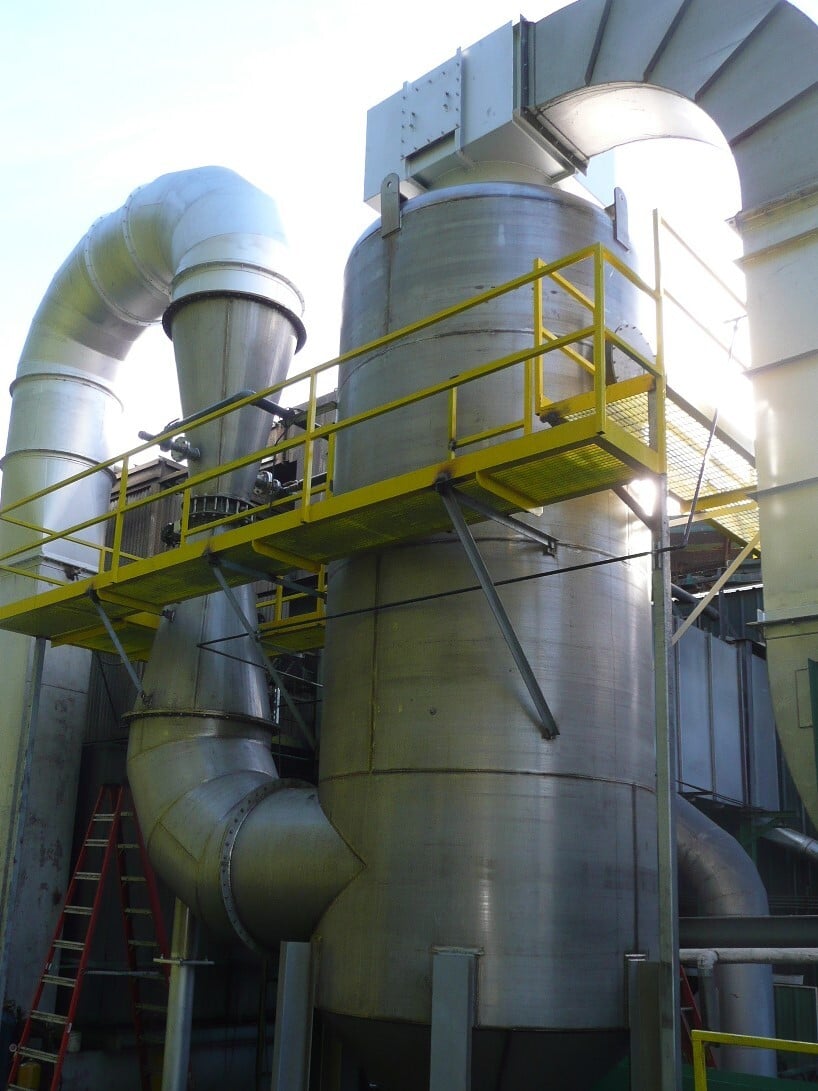

Venturi HE Scrubbers provide reliable, low-maintenance emission control for fine particulates and gas absorption in high-temperature, variable-flow industrial applications.
Venturi scrubbers are ideal when you’re dealing with very small particles, including mists and submicron dust, or looking to absorb gases like sulfur dioxide. Their open, streamlined design eliminates the risk of solids buildup, making them easier to maintain over time. Plus, with adjustable or fixed throat options, you get a system tailored to your application’s efficiency and flow requirements.
Venturi HE scrubbers are used for: • Submicron particle capture • Acid gas absorption • High-temperature gas treatment • Variable gas flow processing • Multi-industry air pollution control

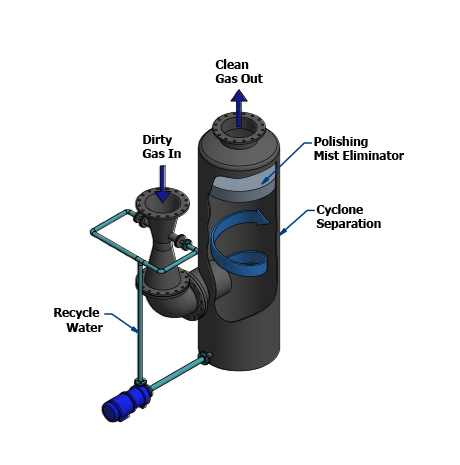

How Do Venturi HE Scrubbers Work?
At the core of the system is a high-velocity Venturi throat where gas accelerates and mixes with liquid introduced at a 90° angle. This action shatters the liquid into microscopic droplets, which collide with and capture particulates and mists through intense turbulence.
The gas-liquid mixture then enters a Cyclone separator, where centrifugal forces separate out the liquid (and captured solids), draining it for recirculation.
Fixed Throat
The most common design is a fixed throat. For a turndown range of 2:1, the fixed throat is the simplest and lowest cost choice.
Variable Throat
For the absolute highest efficiency or for higher turndown, a variable throat is installed which adjusts the cross-sectional area to keep the same pressure drop.
Engineered for Performance
Our team will evaluate your process and specify the ideal pressure drop, energy use, and efficiency—guaranteeing results tailored to your emissions challenge.
Pressure Drop: 6” WG (1.5 kPa) to 60” WG (15 kPa)
Capacity: Shop-built up to 80,000 CFM (135,000 m³/h); larger sizes field-fabricated
ConstructionMaterials:
Fiberglass, Stainless Steel, Alloys, Teflon-lined, and more
Key Advantages of Venturi HE
Our scrubbers are engineered for durability and ease of maintenance, each unit is backed by a performance guarantee to ensure it meets your specific industrial needs.
Every system is sized, engineered, and backed by a performance guarantee.
At Branch Environmental, we custom design and engineer systems with your goals in mind.
Guaranteed Performance Tailored To Your Application
Various Material Options For Any Operating Condition
Complete Packages Including: Controls, Fans, Pumps & More
Scalable Designs To Fit Your Manufacturing Needs
Let's Work Together
Whether you’re looking to upgrade your current system or need a turnkey air pollution control solution, Branch Environmental, can design and deliver a Venturi HE Scrubber that fits your process and goals.
